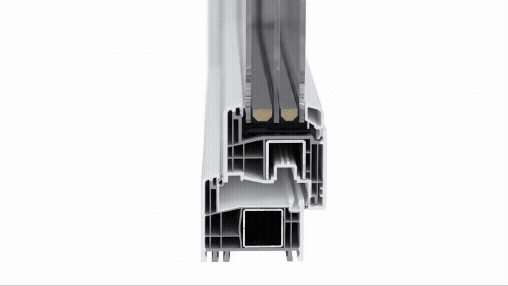

P74 CLASSIC

Opening System

SYSTEM FEATURES

Special attention was paid to structural strength during development. The large main chambers accommodate substantial steel reinforcement, ensuring high resistance to bending.
The increased profile rigidity allows unusually large windows and doors to be manufactured, meeting modern architectural requirements for expansive glazing.
Optimal thermal insulation: with a Uf value of 1.20 W/m²K, the system delivers excellent energy-saving performance, retaining heat indoors and reducing heating and cooling costs.
Certified to Class C3/B4, the system withstands significant wind loads, making it ideal for tall buildings and exposed locations.
With a symmetrical installation depth of 74 mm for both frame and sash, P74 CLASSIC offers a balanced, classic appearance suitable for every façade type.

EXCELLENT STRUCTURAL STABILITY

The large main chamber accommodates substantial steel reinforcement, providing exceptional window stability.

EASY MAINTENANCE

The smooth profile surface and generous frame rebate make the windows exceptionally easy to clean and maintain.

OPTIMAL INDOOR CLIMATE

The patented GECCO ventilation system regulates air exchange and helps prevent mould.

HIGH THERMAL INSULATION

The six-chamber construction prevents thermal bridges and provides excellent energy efficiency for the home.

Uf 1,2 W/m²K

Thermal insulation

Class C3/B4

Wind resistance

Class 4

Air permeability

Rw 44 dB

Sound insulation

Class 9A

Watertightness

up to 44 mm

Glazing thickness

ADDITIONAL INFORMATION

GLAZING

This system is available with high-quality glazing units. Options include single glazing, double glazing and triple glazing with different types of coatings that affect heat, light and sound transmission.

HANDLES AND HARDWARE

Прозорците и вратите от Етиком се произвеждат с висококачествени дръжки на германската компания Hoppe. Стандартната гама предлага три дизайна на дръжката в 5 цветови гами. Всички дръжки имат патентована система за защита от влизане с взлом – Secustik®. Те се разпознават по характерният „кликащ“ звук, който се чува при въртене на дръжката. Различни от стандартната гама дръжки се предлагат по желание от страна на клиента.

OPENING TYPES

Плъзгащите се структури UG са предназначени за жилищни сгради, основно частни и обществени сгради
Системата е адаптирана към най-новите изисквания, свързани с топлинното представяне, естетиката и безопасността; налични опции на системата: UG версия с нисък праг, UG – 90°-ъглово решение

COLOURS

For those who prefer natural materials without sacrificing the advantages of modern windows, a decorative foil finish is available. Choose from a wide range of wood-effect decors and embossed colours.
